- Hign-concerned Chemical: None
- Output Power(w): 3w-5w
- Battery Capacity(mAh): 1000
- Waterproof / Water-Resistant: No
- Battery Included: Yes
- Material: Plastic
- Storage Channel: 16
- Frequency Range: 400-470MHz

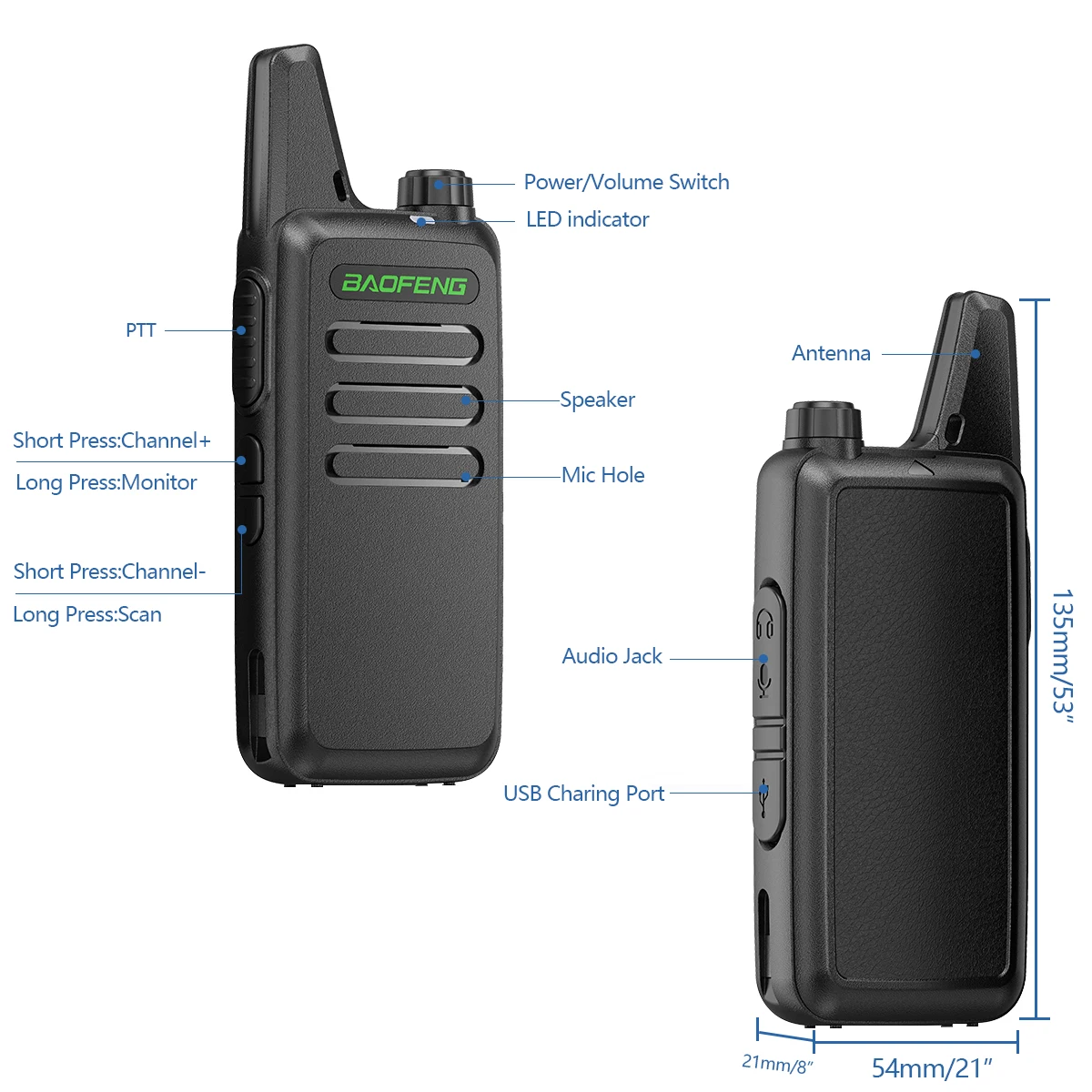

- Dimensions: 21*54*135mm
- Model Number: T20
- Walkie Talkie Type: Portable
- Is_Display: No
- Maximum Range: 3km-5km
- Brand Name: BAOFENG
- Origin: Mainland China
- Certification: CE,FCC
Function:

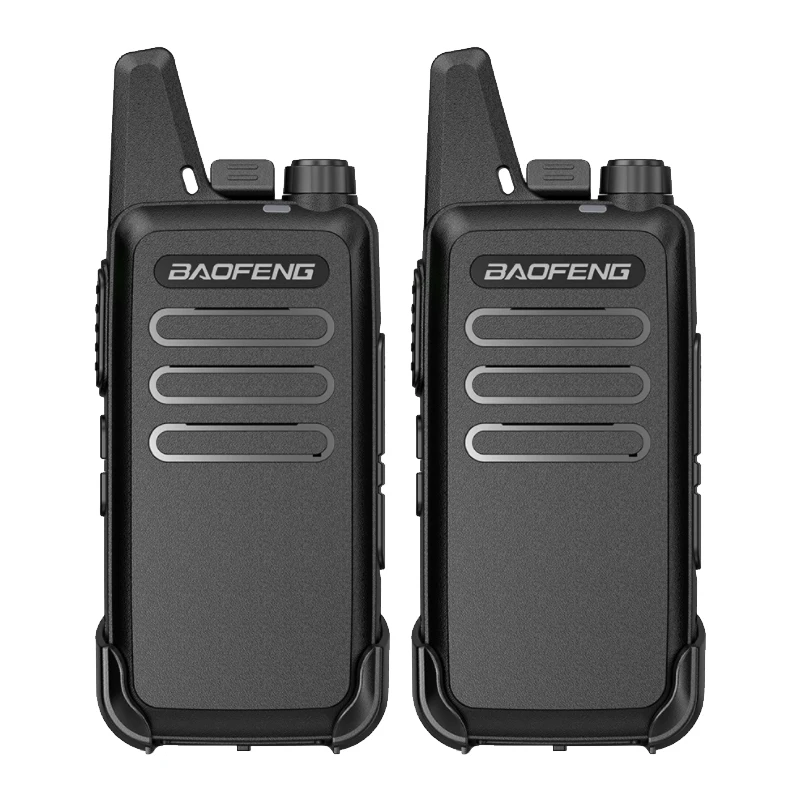

1. Baofeng BF-T20 radio is small and lightweight, when you are working, it can bring more convenience for you.
2. General Integrated antenna is not easy to broken,also can provide long range transmission.

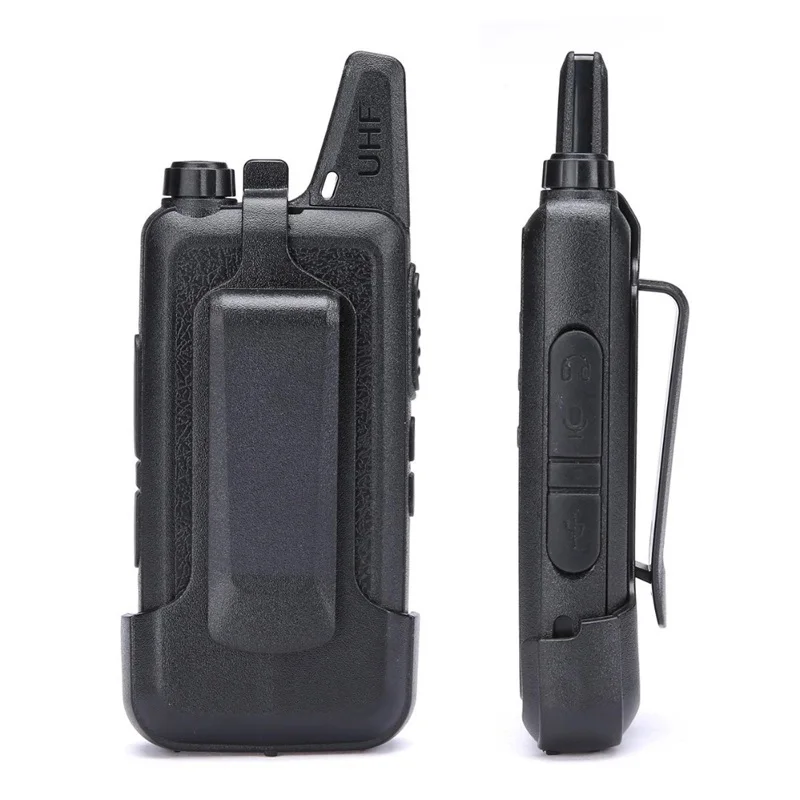

3. Durable belt clips, easy to disassemble and installation.You can easily attach it to your belt, pocket or backpack.
4. Baofeng BF-T20 has VOX function which makes you have hands free operation.Particularly apply to some hands-free occasions,such as cycling,holding objects, or working.

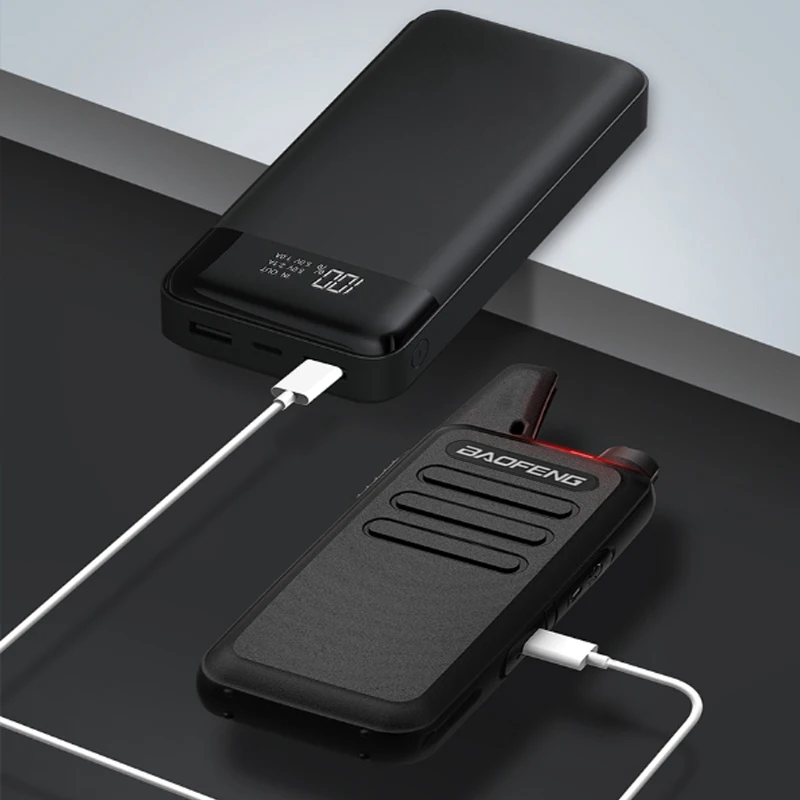

5. USB Charging.They have a mini usb (not micro) port they will recharge from a car charger, power bank,PC,USB desktop charger or wall charger
Red and green light remind you are charging and have finished charging.
Easy to carry when you need work outside,and can easy to found where can charge.
6. Baofeng BF-T20 walkie talkie is suitable for a variety of occasions and a variety of people,can be widly used in big mall,restaurant,hotel,coffee shop,KTV,Bar,warehouse,property management,travel,hunting and so on.
7. PC Software Programmable,When you have a programming cable and the Baofeng BF-T20 software,you can program the radio by PC.If you need them ,you can download it from our official website.Or leave us your email address,we can send it by email.
Main Features
1. Baofeng BF-T20 radio is small and lightweight, when you are working, it can bring more convenience for you.
2. General Integrated antenna is not easy to broken,also can provide long range transmission.
3. Durable belt clips, easy to disassemble and installation. You can easily attach it to your belt, pocket or backpack.
4. Baofeng BF-T20 has VOX function which makes you have hands free operation. Particularly apply to some hands-free occasions,such as cycling,holding objects, or working.
5. USB Charging. They have a usb port they will recharge from a car charger, power bank,PC,USB desktop charger or wall charger .
Red and green light remind you are charging and have finished charging.
Easy to carry when you need work outside,and can easy to found where can charge.
6. Baofeng BF-T20 walkie talkie is suitable for a variety of occasions and a variety of people,can be widly used in big mall,restaurant,hotel,coffee shop,KTV,Bar,warehouse,property management,travel,hunting and so on.
7. PC Software Programmable,When you have a programming cable and the Baofeng BF-T20 software,you can program the radio by PC. If you need them ,you can download it from our official website. Or leave us your email address,we can send it by email.
Technical Parameters
Specification
Model Number:BF-T20
Frequency Range:UHF 400-470MHz
Power:≤5W
Colour:Black/Camo/Red/White
Channel Capacity:16
Battery Capacity:Li-ion 1500mAh
Working Voltage:DC 3.7V
Mic/Speaker/Programming Port:2 pin plug type for Kenwood
Antenna:Integrated antenna
Antenna Impendence:50Ohm
Weight Of Two Way Radio (Include battery and antenna)3.99oz(113g)
Size Of Two Way Radio:(10.5*2.5*2)CM Not include antenna
Transmitter
Output Power:5W
The Maximum Deviation:<=plusmn5KHz
Residual Radiation:<60dB
Current<=1500mA
Audio Response:+7~-12.5dB
Receiver
Sensitivity:<=0.16microV(12dB SINAD)
Squelch Sensitivity:<0.2micro
VIntermodulation:50dB
Audio Power>=300mW
Current:<=100mA
Squelch Current:20mA
