- Hign-concerned Chemical: None
- Battery Included: Yes
- Maximum Range: 5km
- Frequency Range: VHF 136~174MHz UHF 400~520MHz
- Storage Channel: 128
- Battery Capacity(mAh): 1800
- Model Number: BF-UV5R
- Set Type: Portable Set
- Brand Name: BAOFENG
- Origin: Mainland China
- Output Voltage: 5w
- Certification: CE
• Dual Band Ham Two Way Radio :This walkie talkie has both VHF and UHF bands, allowing you to communicate over a wider range of frequencies.
• FM Radio :With an FM radio built-in, you can listen to your favorite stations while on the go.
• Handheld Transceiver :The handheld design makes it easy to carry and use, perfect for outdoor activities like hunting.
• 16KM Maximum Range :With a maximum range of 16 kilometers, you can communicate with other walkie talkies from a distance.
Multiple frequency modulation methods:
① Program Manually In VFO Mode:Press “VFO/MR”to switch into Frequency mode,Without being bound by the computer,you can input frequency by keyboard,select CTCSSand store it.
②Program by PC :You can use our programming soft to program your walkie-talkie with PC, easy to operate, suitable for novices, and provide technical guidance.Work with CHIRP!
SOS Alarm: When you encounter an emergency, you can short press the side button -CALL, the SOS function will sound a loud siren and flashing light when turned on to alert others to your location.

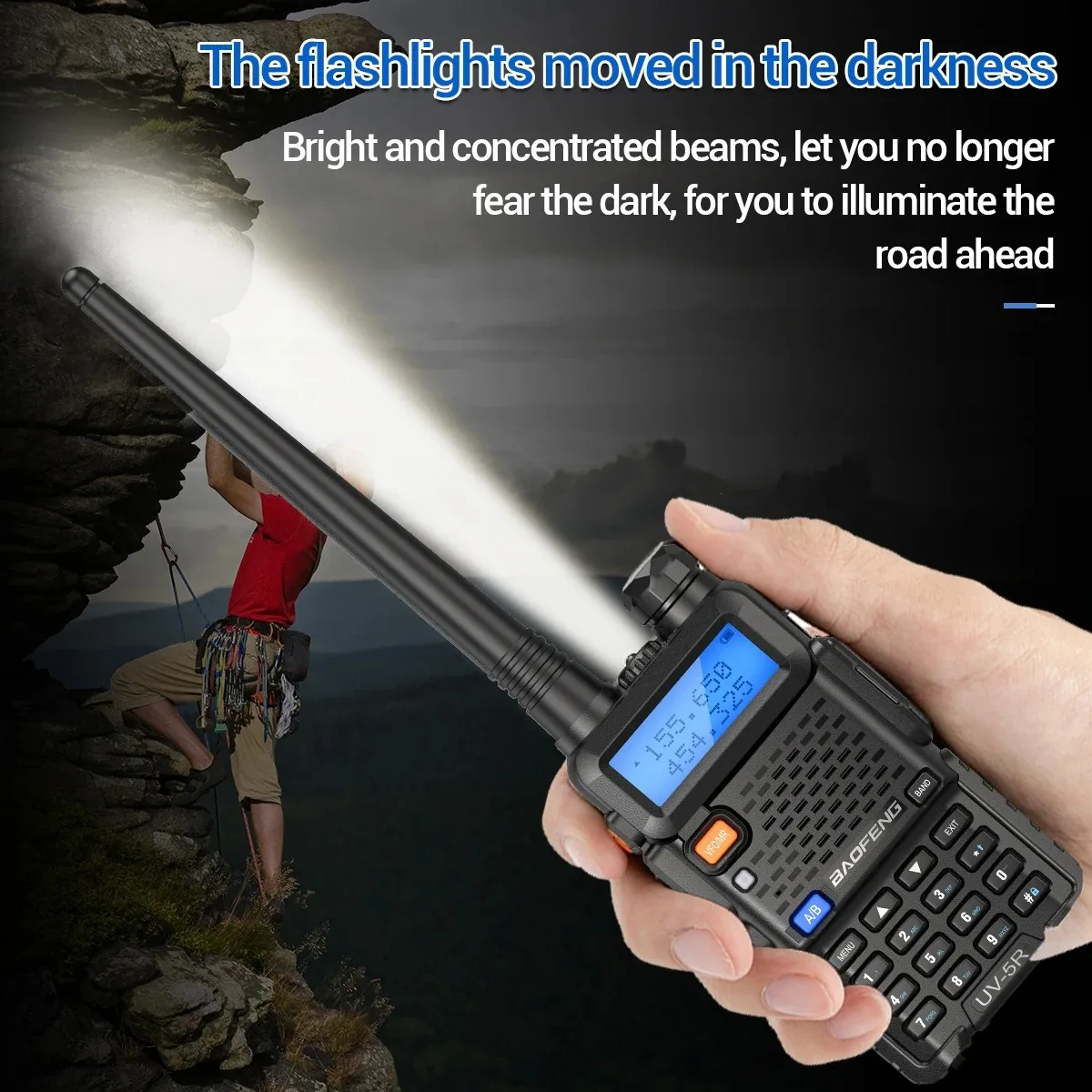

FM Radio &Super-Bright:FM radio allows you to enjoy your leisure time by listening to the FM radio , getting a relaxed mood during the long trip.Baofeng UV-5R radio can also provide light to keep you and your loved ones out of the dark.
Dual Standby:Dual Band, Dual Display, Dual Frequency,Dual Standby Help you communicate more freely and without barriers
Perfect for Outdoor Adventures: With a lightweight and compact size, the weather solar radio easily fits in your backpack, and the included wrist strap ensures it won’t get lost, ideal as a must survival kit for any outdoor adventure.
CEFCCRoHsdualbandhamradiotransceiverwithVOXfunctionUV5R
|
AllofouritemsareBrandNew |
||
|
Model |
BaofengUV5R |
|
|
Dual Band/Dual Display/Dual Standby |
A / Bbandindependent operation (UVUUV) |
|
|
128groupschannelsstorage |
Shortcutmenuoperationmode |
|
|
VFO&Memorychannelsscan |
EmergencyAlarm |
|
|
Time-outTimer(TOT) |
0~9gradesVOXselectable |
|
|
PTT&ANIES |
FMradioand25stationsstorage |
|
|
Voicecompanding |
50CTCSS/104DCS |
|
|
High/LowTXpowerselectable |
Busychannellock-out(BCLO) |
|
|
DTMFfunction |
OFFSETfunction |
|
|
Wide/NarrowBand(25kHz/12.5kHz) |
Yes |
|
|
VOXfunction |
Yes |
|
|
Busylockoutfunction |
Yes |
|
|
Scanningfunction |
Yes |
|
|
Monitorfunction |
Yes |
|
|
Time-outTimer(TOT)function |
Yes |
|
|
LCD display |
Yes |
|
|
Dual display |
Yes |
|
|
Battery voltage display function |
Yes |
|
|
Channelnamedisplayandeditingfunctions |
Yes |
|
|
Signalstrengthindicator |
Yes |
|
|
Keypadlockfunction |
Yes |
|
|
Built-inLedtorch |
Yes |
|
|
FMradio |
Yes |
|
|
Wireclonefunction |
Yes |
|
|
Emergencyalarmfunction |
Yes |
|
|
Lowbatteryalarm |
Yes |
|
|
Powersavingfunction |
Yes |
|
|
High/LowTXpowerselectable |
Yes |
5W/1W |
|
ROGERSET |
YesYes |
|
|
ChineseandEnglishvoice prompt |
Yes |
|
|
PCsoftwareprogrammable |
Yes |
|
|
RatedVoltage |
7.4VDC±10% |
|
|
Outputpower |
<=5W |
|
|
Batterytype |
Li-ion batteries |
|
|
Batterycapacity |
1800mAh |
|
|
Workingtemperature |
-20~+50 ° C |
|
|
AntennaImpedance |
50ohm |
|
|
Weight |
255g |
|
|
Dimension(LXWXH) |
58X32X110mm(NotAntenna) |
|
|
Frequencystability |
±2.5ppm |
|
|
Carierwavetomerance |
5ppm |
|
|
Modulation |
16K Ø F3E/11K Ø F3E |
|
|
Maxfrequencydeviation |
<5kHz(Wide) |
|
|
Modulationcharacter |
6dBperfoldfrequencypatch |
|
|
Emissioncurrent |
<1.6A(5W) |
|
|
CTCSS/DCS |
0.5±0.1kHz(Wide) |
|
|
Sensitivity |
${132} |
|
|
Silentsensitivity |
${134} |
|
|
IntermediationDistortion |
<10% |
|
|
Intermodulation |
8-12mv |
|
|
Adjacentchannelselectivity(wide/narrow) |
<-65dB(Wide)<-60dB(Narrow) |
|
PackageInclude:
1XPortableradio
1XAntenna
1XLi-ionbattery pack
1XLI-ioncharger
1XBeltclip
1XThesling
1XUser’smanual
other accessories depend on your choice in the link
NOTICE:
*The warehouse sends EU Plug by default: Russia, Spain, Germany, Korea, France, Netherlands, Denmark, Finland, Norway, Poland, Portugal, Austria, Belgium, Hungary, Sweden, India, Italy, Ukraine, Chile, Turkey, etc.
*User Manual: The user manual we provide is English version, including paper version and electronic version, if you need electronic version, please contact us, thanks.
*How to communicate with different walkie talkies: No matter what brand of walkietalkie you use, as long as the frequency is the same, you can communicate.
*Long-Range communication :Walkie talkies long range can reach 3-10km in open areas such as rural areas, suburbs or seaside, etc. where there is no shelter. If in cities or towns, walkie talkies can reach 2-5km in most cases. The actual distance Depends on the obstruction of the current environment.
