- Hign-concerned Chemical: None
- Model Number: Smart
- Wattage: NA
- Brand Name: GIRIER
- Certification: CE,RoHS
- Origin: Mainland China
- Type: ZigBee/Wi-Fi TRV Optional
- Power Supply: 3*1.5 V Alkaline AA batteries
- Standby Current: 6 μA Min
- Operating Temperature: 0~50℃, for indoor use only
- Storage Temperature: -20~70℃
- Wi-Fi Standard: IEEE 802.11b/g/n (2.4GHz)
- Wi-Fi Range: 200m+ in the open field
- ZigBee Standard: IEEE 802.15.4, Tuya Zigbee 3.0
- Temperature Sensor: NTC, B=3380, R25=10 kQ±1%
- Protection Level: IP20
- Surface Temperature: 90°C Max (at the radiator)
- Connection Standard: M30x 1.5 mm
- Linear Travel: 6 mm
- Adapters: Danfoss RA, RAV, RAVL, Caleffi, Giacomini, M28
- Dimensions (WxHxD): 52.4mm 101mm * 52.4mm
- Hub Requirement: Yes(When choose ZigBee version)
- Home Assistant: Support(When choose ZigBee version)
- ZigBee to MQTT: Support(When choose ZigBee version)
Note
Please note that if you choose ZigBee thermostatic radiator valve, a Tuya ZigBee Hub is required for pairing.
Save More than 30% on Energy Costs
Mini body, yet powerful and mighty. Adopting PID algorithm to ensure efficient temperature control. The errors are less than 1 ℃. Programmable heating timer, Eco mode, and smart scenes optimize your temperature control, while window open detection automatically adjusts to prevent energy waste.

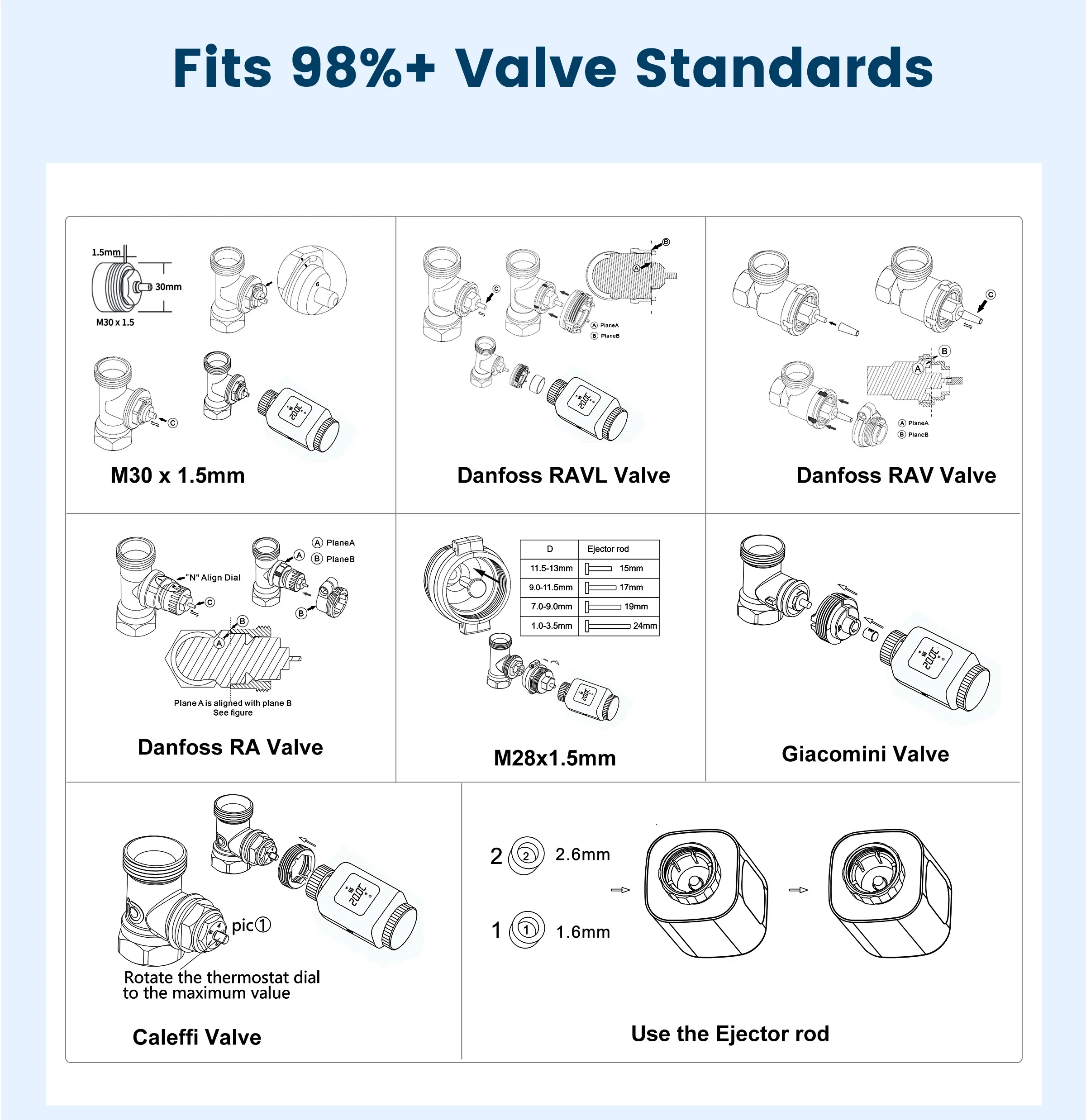

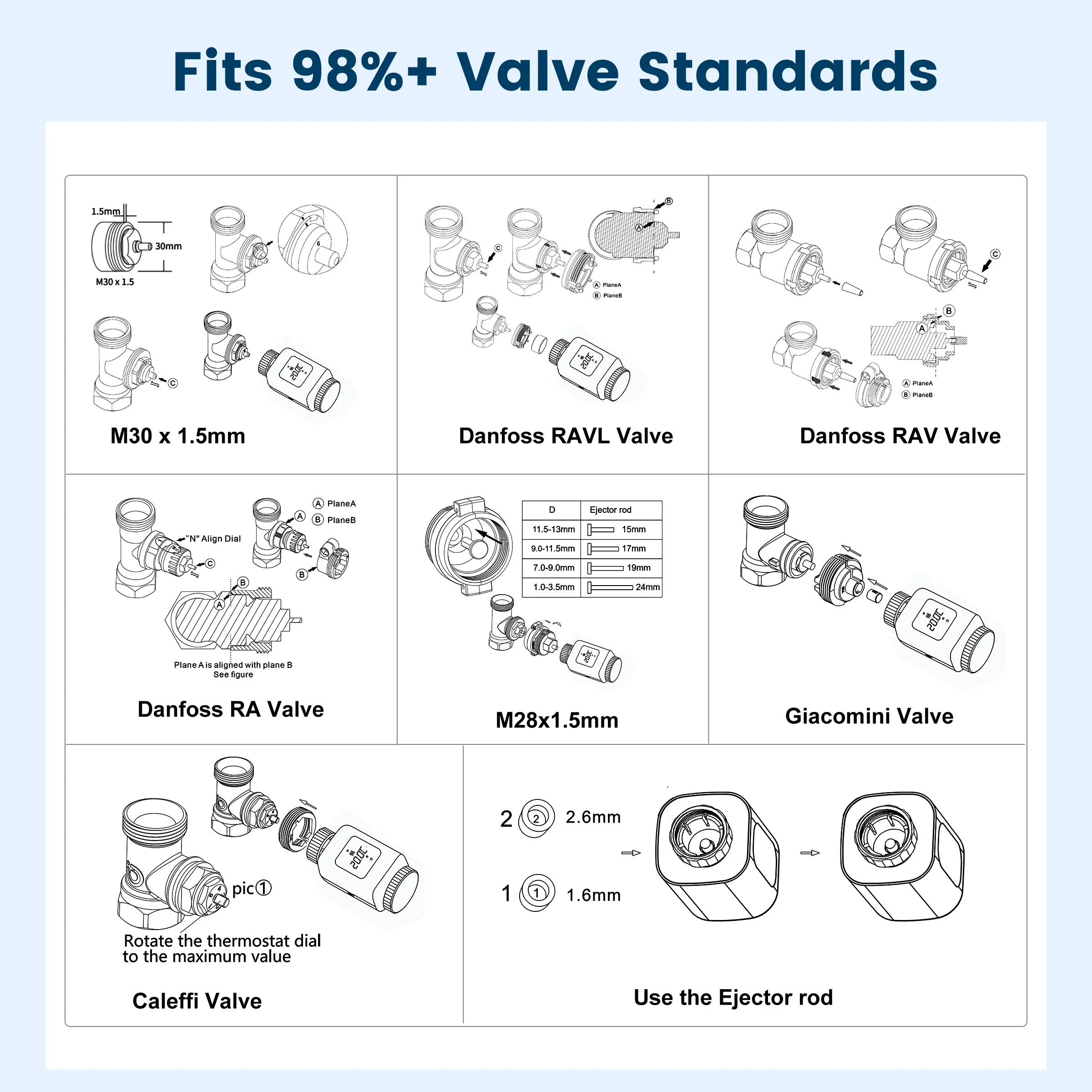

Fits 98%+ Valve Standards
Designed to fit 98%+ of radiator valves, our TRV seamlessly integrates with standard “M30 x 1.5 mm” valves. With included accessories, installation is hassle-free.
Precise Temperature Regulation
Equipped with a high-quality motor, the GIRIER smart thermostatic radiator valve ensures accurate temperature control. Boost, manual, or app-based adjustments swiftly reach your desired comfort level.
Customizable Heating Schedules
Simplify your life with weekly programming, allowing for 6 customizable time periods daily. Meet all your heating needs effortlessly, ensuring a consistently warm home.
Effortless Voice Control
Control your TRV hands-free with Alexa, Yandex Alice, or Google Assistant. Simple voice commands adjust settings and temperatures, enhancing your smart home experience.
APP Remote Control
Stay in control from anywhere with the TuyaSmart/Smart Life app. Monitor and adjust your TRV settings remotely, ensuring optimal comfort and energy efficiency.
SPECIFICATION
Type: ZigBee/Wi-Fi TRV Optional
Power Supply: 3*1.5 V Alkaline AA batteries
Standby Current: 6 μA Min
Operating Temperature: 0~50℃, for indoor use only
Storage Temperature: -20~70℃
Wi-Fi: 802.11b/g/n (2.4GHz)
Wi-Fi Range: 200m+ in the open field
ZigBee Standard: IEEE 802.15.4, Tuya Zigbee 3.0
Temperature Sensor: NTC, B=3380, R25=10 kQ±1%
Protection Level: IP20
Surface Temperature: 90°C Max (at the radiator)
Connection Standard: M30x 1.5 mm
Linear Travel: 6 mm
Adapters: Danfoss RA, RAV, RAVL, Caleffi, Giacomini, M28
Dimensions (WxHxD): 52.4mm 101mm * 52.4mm
Hub Requirement: Yes(When choose ZigBee version)
Home Assistant: Support(When choose ZigBee version)
ZigBee to MQTT: Support(When choose ZigBee version)
Warm Tip
1. We suggest that you use additional door and window sensors to trigger the window detection function. If there are no door and window sensors, this function will be triggered when TRV detects a 5 ℃ (41 ℉) decrease in room temperature.
2. Tuya ZigBee Hub is required when you choose ZigBee TRV.
