- Hign-concerned Chemical: None
- Package: Yes
- Model Number: TC100
- Certification: CE
- Funtion: VGA/RJ45
- Standard: USB 3.0
- Ports: 13
- Interface Type: USB Type-C
- Ports: 13
- Origin: Mainland China
- Plug Type: None

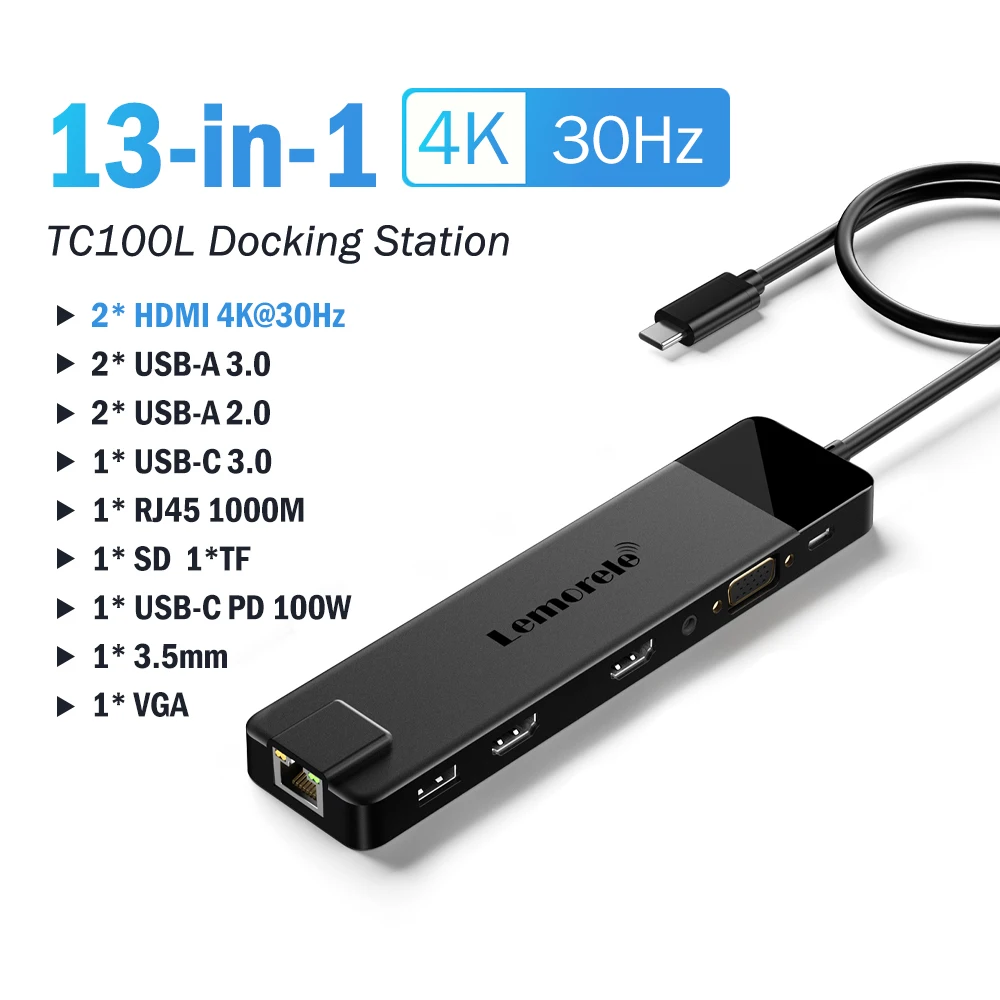

Product Interface:
13-in-1：
Ethernet interface: RJ45-1000M
Screen interface: 2*HDMI-4K@30Hz + VGA-1080P@60Hz （The two HDMI are used together with only 1080P output）
USB port: 2*USB-A-3.0 + 2*USB-A-2.0 + 1* USB-C-3.0
Memory card interface: SD + TF (support simultaneous operation)
Power connector: USB-C-PD-100W
Audio interface: 3.5mm AUDIO （Only audio output is supported）
Note
When you use the laptop connection docking station to use the HDMI interface, please make sure that your laptop USB-C port supports audio and video output
When you use the laptop connection docking station to use HDMI and PD power supply interfaces, please make sure that your notebook USB-C port supports audio and video output and power supply at the same time
Otherwise, the HDMI interface or PD power supply interface cannot be used

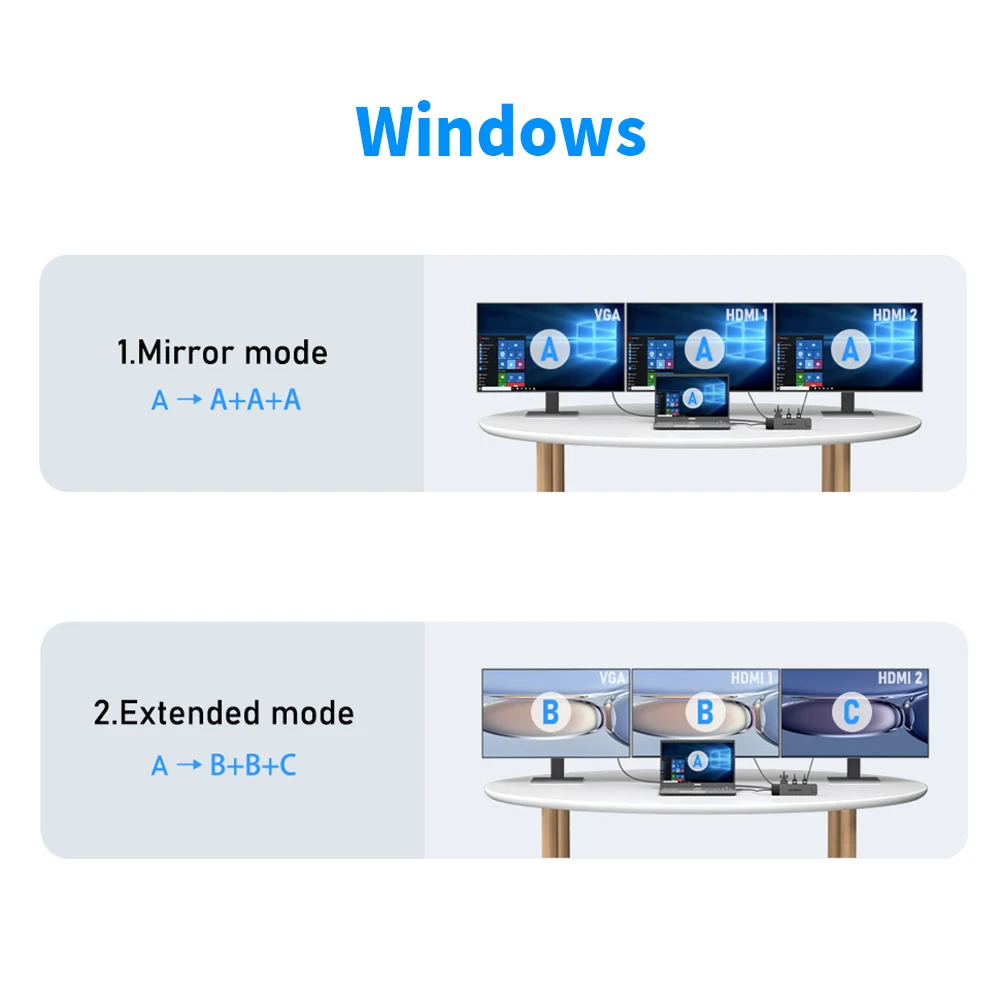

Three-screen expansion
Windows systems support A to A+A+A, A to B+B+C
In the copy mode, three screens are supported at the same time
In extended mode, VGA will be consistent with HDMI1
Mac systems support A to A+A+A, A to B+B+B
Whether in copy or extended mode, all three screens display the same content
