- Hign-concerned Chemical: None
- Signal Connection Type: None
- Application Scenarios: animal,other,Architecture
- Lens Mount: C Mount
- Supporting Language: English,Simplified Chinese,Traditional Chinese Style
- Memory Card Type: SD Card
- Model Number: iVaster25/50BPLWT11M-Pro
- Set Type: Fuselage
- Special Feature: None
- Video Resolution: 480i/P（720*480）
- Effective MegaPixel: < 8MP
- Sensor Size (inches): Full-Frame
- Brand Name: CONTRASTECH
- Origin: Mainland China
- Certification: CE
- Sensor type: Uncooled VOx Detector
- Resolution: 384 x 288
- Pixel Size: 12 x 12μm
- Frame Rate: 25/50kHz
- EFL: 4.1/6.9/9.1/13 /19/25/35/55/75/100mm
- Interface: MIPI/BT.656/BT.1120/LVDS/ LVCMOS
- Dimension: 26x26mm/20±3g

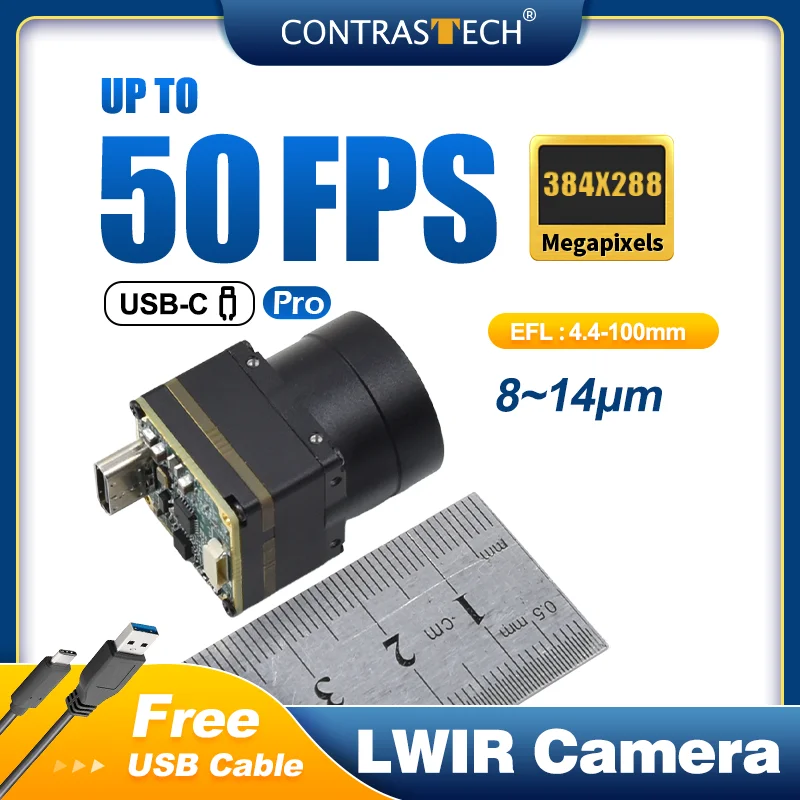

Pro Vision 384×288 50Hz Lossless Output 1-4x Digital Zoom Radiometric Flir Thermal Camera Module for FPV Drone Contrastech
Main Features
● 8 to 14 μm spectrum, pixel size 12 μm
● Ultra-light module weight < 5g, lightweight design
● Efficient and accurate temperature measurement ability, ensures quickly obtaining accurate temperature information when starting the device
● Provide Windows, Linux, Android SDK, easy to rapid back-end development
Specifications
|
Model |
Resolution |
Frame Rate |
Radiometric |
Dimension |
Optinal Lens |
|
iVaster50BPLW11M-Pro-AX |
384 x 288 |
25kHz |
/ |
26x26mm/20±3g |
4.1/6.9/9.1/13/19/25 /35/55/75/100mm[1] |
|
iVaster25BPLWT11M-Pro-AX |
384 x 288 |
50kHz |
● |
Note 1:Temp. Measurement version not support 55/75/100mm.
Camera Overview
|
Model |
Resolution |
Frame Rate |
Radiometric |
Dimension |
Optinal Lens |
|
iVaster25BPLWT05M |
256×192 |
25kHz |
● |
18x18mm/8.7g |
2/3.2/7/10/13mm |
|
iVaster50BPLW05M |
256×192 |
50FPS |
/ |
||
|
iVaster25BPLWT11M |
384×288 |
25FPS |
● |
18x18mm/4.8g |
2.88/5.3/9/19mm |
|
iVaster50BPLW11M |
384×288 |
50kHz |
/ |
||
|
iVaster25BPLWT30M |
640×512 |
25kHz |
● |
21x21mm/8g |
4.1/6.9/9.1/13/25/45mm |
|
iVaster50BPLW30M |
640×512 |
50kHz |
/ |
||
|
iVaster30BPLWT120M |
1280×1024 |
30kHz |
● |
29x29mm/24.5g |
10/35/50/75mm |
|
iVaster30BPLW120M |
1280×1024 |
30kHz |
/ |
What's difference from other FPV drone thermal module？Why so expensive?
A:Our camera module is industrial grade with lossless and no compression raw data output, also supports secondary development,
which has high quality and same level with flir thermal camera module. Comprehensive product range with rich interfaces and
resolution, covering 256×192, 384×288, 640×512, 1280×1024 of fire alarm, vibration and shock resistance series for various
challenging solutions.
