- Hign-concerned Chemical: None
- Output Power(w): 10w-25w
- Battery Capacity(mAh): 0
- Waterproof / Water-Resistant: No
- Material: Strong Polycarbonate Plastic
- Storage Channel: 200
- Frequency Range: (VHF) 136-174MHz (UHF) 400-480MHz
- Dimensions: 98x35x118mm
- Model Number: KT-9900
- Walkie Talkie Type: Car
- Is_Display: Yes
- Maximum Range: 10km-50km
- Brand Name: RONGYIN
- Origin: Mainland China
- Certification: CE,Dot,EAC,EPA,FCC,GMP,RoHS,TGA,UL,KC,pse,weee
- Net Weight: 930G
- Package: Box
- size: 98x118x35mm
- frequency: (VHF) 136-174MHz (UHF) 400-480MHz
- Channel: 200
- Operating Temperature: -20℃ to 60℃
- Channel Spacing: 25KHz/20KHz/12.5KHz
- Frequency Stability: plusmn2.5ppm
- Power output: 25W/20W(VHF/UHF)
- Model 1: QYT KT-9900
- Model 2: QYT KT-WP12
KT-9900/KT-WP12
UHF/VHF DUAL BAND
MINI CAR WALKIE TALKIE
25Watts Max.
PC Program (Spread spectrum by program )
Dual Band VHF 136-174MHz & UHF 400-480MHz
200 Channels
External Speaker/PTT
DTMF function, 2 tone, 5tone
Patrol function
Monitoring function
Telehalo function
Remote death function
Boot function
Alarm function
Call key
Long distance communication
25W power output
1x Mobile Radio

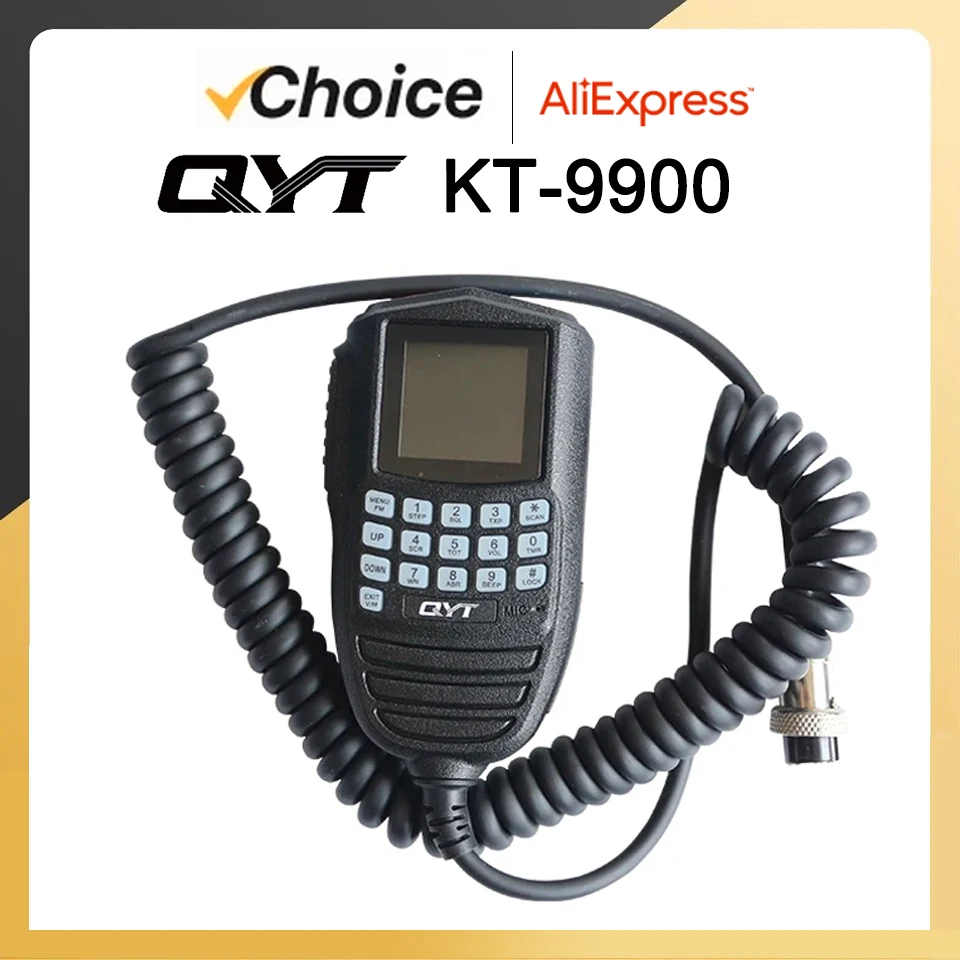

1x Microphone
1x Power cable
1x Mounting Bracket
1x Screw and fuse
1x User Manual
Receiving
Broadband Narrowband
Sensitivity ≤0.25μν ≤0.35μν
(12db SINAD)
Adjacent Channel ≥70db ≥60db
Selectivity
Intermodulation ≥65db ≥60db
Spurious response ≥70db ≥70db
Audio response +1~-3db(0.3~3KHz) +1~~3db(0.3~2.55KHz)
Signal to noise ratio ≥45db ≥40db
Audio distortion ≤5%
Transmiting
Broadband Narrowband
Output Power 25W/20W(VHF/UHF)
System 16KΦF3E 11KΦF3E
Adjacent channel ≥70db ≥60db
power
Signal to noise ratio ≥40db ≥36db
Parasitic and ≥60db ≥60db
harmonic waves
Audio response +1~-3db(0.3~3KHz) +1~~3db(0.3~2.55KHz)
Audio distortion ≤5%
