- Hign-concerned Chemical: None
- Certification: CE
- Origin: Mainland China
- Brand Name: VEVOR
- Power Supply: DC 4.8-6V
- Measuring Range: Diameter: 500 m (using the laser detector)
- Spinning Speed: 0/60/120/300/600 rpm
- Dimension: 161x161x184 mm
- Weight: 2 kg/4.41 lbs
Product Description
Rotary Laser Level Kit
The rotary level has reached the industrial level and can emit a precise green beam for horizontal, vertical, and directional scanning. With 500 m working distance and 360-degree rotatable design, this rotating laser level creates stable scan lines for maximum visibility in light conditions. Our rotary self-level laser is widely used in construction projects, large equipment installation, room decorating, etc.
- Premium Quality
- 360-Degree Rotary Scanning
- Self-Leveling & Auto-Alignment
- Large Measuring Range
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR’s products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Key Features
Superior Waterproof Material
The line laser level is made of the industrial-grade plastic shell and high-quality metal material. It is IP54 waterproof and dust-proof, and FDA certified.
360-Degree Rotary Laser Module
The rotary level laser provides an advanced 360-degree rotary laser module, emitting highly visible and focused green beams with 532 nm wavelength.

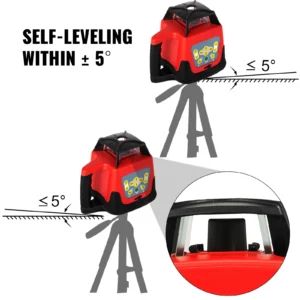

Self-Leveling Function
When the slope angle is within ±5 degrees, the line laser with remote can be leveled automatically, controlled by the temperature-stable sensor.
500M Working Distance
This measuring laser supports a maximum working distance of 500 m when used with the laser detector. It can be installed vertically or horizontally.
Multifunctional Operation Panel
The rotary laser level kit is equipped with a multifunctional operation panel, giving you access to set the RPM, direction scan, and other functions.
Wide Application
The rotary laser is widely used in architecture construction, road maintenance, bridge building, elevator installation, indoor decorating, etc.
2kg
Specifications
- Leveling Accuracy: Horizontal: ±20″; Vertical: ±20″
- Leveling Range: ±5°
- Measuring Range: Diameter: 500 m (using the laser detector)
- Spinning Speed: 0/60/120/300/600 rpm
- Directional-Scanning Angle: 0°/10°/45°/90°/180°
- Slope-Adjusting Range: ±5° (Bi-Directional)
- Light Source: Laser Diode, Wavelength: 532 nm
- Down Point Diode: Accuracy: ±1 mm/1.5 m
- Remote Controlling Distance: Approximately 20 m
- Working Temperature: -20℃-45℃/4℉-113℉
- Waterproof: IP54
- Power Supply: DC 4.8-6V (4 sections of NI-MH batteries or 4 sections of NI-MH rechargeable batteries)
- Hours in Continuous Use: Approximately 25 hours
- Dimension (L*W*H): 161×161×184 mm/6.34″x6.34″x7.24″
- Weight: 2 kg/4.41 lbs
Package Content
- 1 x Rotary Laser
- 1 x Carrying Case
- 1 x Pair of Glasses
- 1 x Laser Target
- 1 x Laser Detector
- 1 x Remote Control
- 1 x Charger
- 2 x Keys
- 1 x User Manual
5m
Specifications
-
Material: Aluminum
-
Tripod Height: 3.41-5.41 ft/1.04-1.65 m
-
Staff Length: 16.4 ft/5 m
-
Tripod Weight: 7.94 lb/3.6 kg
-
Staff Weight: 3.53 lb/1.6 kg
Package Content
-
1 x Tripod
-
1 x Staff
-
1 x Packet
Features & Details
- 【PREMIUM QUALITY】 – This laser level is built with sturdy plastic and metal materials for durable use and has passed FDA certification. It is IP54 waterproof and dust-proof, ensuring stable and regular work in the damp or dusty environment.
- 【360-DEGREE ROTARY SCANNING】 – Featuring the 360-degree rotatable function, the outdoor laser level scans your entire working area with clear, bright, and stable lines. It comes with laser glasses to protect your eyes, and easily see the laser in strong sunlight.
- 【SELF-LEVELING & AUTO-ALIGNMENT】 – The laser level rotating is auto-controlled to align and adjust the line within the self-leveling range of ±5 degrees. With the most advanced positioning system, it makes your works more efficient and accurate.

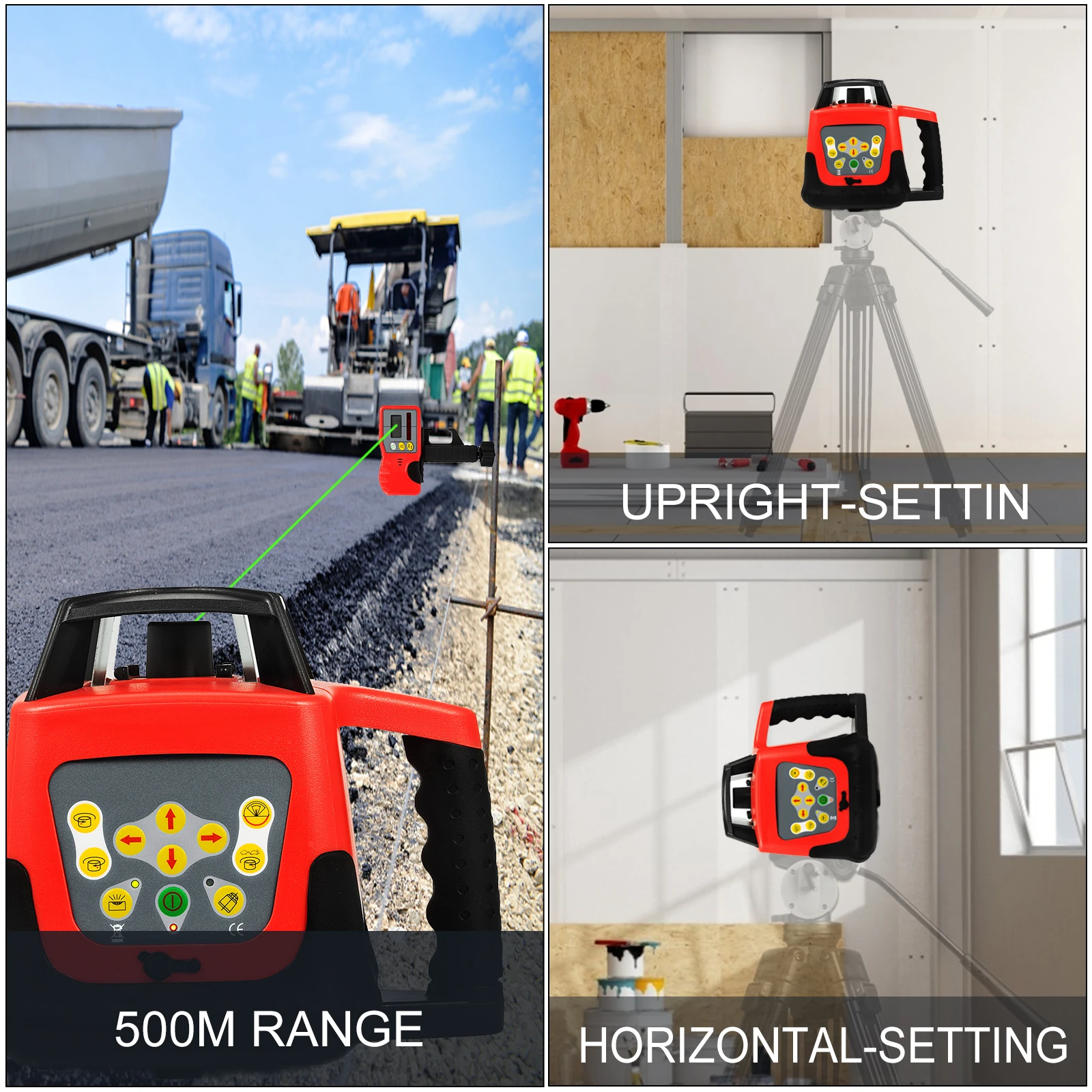

- 【LARGE MEASURING RANGE】 – Used with the laser detector, the rotary laser level’s measuring range will reach 500 m in diameter. It can be set upright to create a horizontal plane and a plumb line or laid down to form a vertical plane and a horizontal line.
- 【EXTENSIVE USING】 – Our laser level is suitable for indoor and outdoor use, perfect for marking out, performing accurate frame and truss work, carpentry, shelving, etc. It has been extensively used in building construction and in-home decoration.
